Description

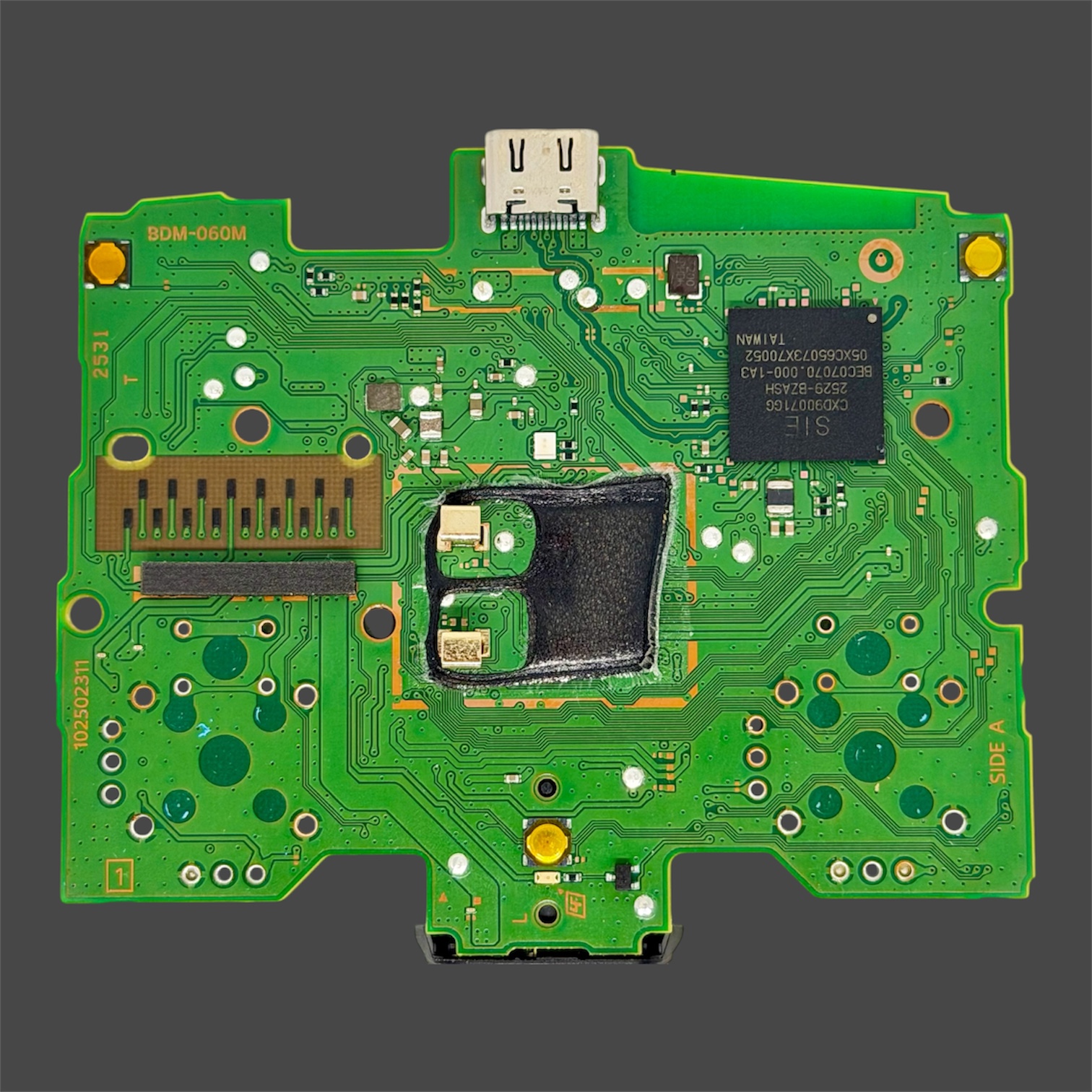

The BDM-060M is a motherboard revision found in the Sony DualSense PS5 wireless controller. It houses the controller’s main processing circuitry and manages key functions such as button inputs, analog sticks, USB-C charging and data communication, Bluetooth connectivity, and power management. It also contains supporting circuitry for features like haptic feedback and adaptive triggers. The BDM-060M revision uses a Sony CXD90071GG main processor and a Dialog DA9087 power-management IC. These components are important when diagnosing power-related faults, charging issues, and controller communication problems.
No parts listed for this board yet. Know what's on it?
Add or contribute components
sony dualsense controller
Specifications
Components0
